L10 Series

Harsh Environment
Good for Washdown Areas

Built for highly corrosive environments
Designed for vertical layout cameras
Meets IP66 standards (depending on configuration)
316 stainless steel construction
Designed to work in food applications
Camera to Viewport distance can be changed to handle long or wide angle lenses
Comes standard with glass or polycarbonate viewport
Cord Grip works with pre-made cables

Product Features

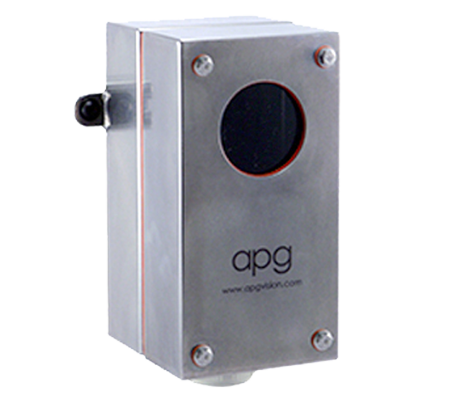

The L10 enclosure is a 316 stainless steel housing for your Datalogic A Series, Matrox GT, or NI smart camera. Designed to work in highly corrosive environments, it also is designed to work in food applications, with care taken to reduce pockets where water might sit.

The enclosure is highly configurable, with options for both drillable and single cable cord grips, air cooling options and an air curtain faceplate option.

The standard cable gland at the bottom of the enclosure uses a split insert to provide a watertight seal around one or more cables. The gland allows passage of the standard I/O and power cable (and the Ethernet cable) without removal of the connectors from the cables.

The enclosure is designed so that once the enclosure cover is removed, the user has full access to the lens, taking the guesswork out of changing focus and f-stop settings.

The standard L10 enclosure handles a lens length of mm, and spacers allow the lens to be adjusted close to the viewport to reduce reflections. The enclosure also is designed to readily accommodate large diameter lenses or ringlights up to 65mm in diameter (lit area).

Standard or extended lid available.

Enclosure is constructed of 16 gauge 316 stainless steel.
All external fasteners are 316 stainless steel.
Fasteners (M4x8 BHSCS) to mount the Cognex 5000 series camera are included.

Enclosure meets NEMA 4X standards when equipped with single cable cord grips.

Cord grip options include: Single cable cord grips (PG11), drillable (PG29) 29mm cord grip, 1″ NPT conduit, 1/4″ NPT connectors for air cooling and pressure regulation. Enclosure also is available with an air curtain faceplate. Call APG for options.
