2500 SERIES

High-Speed 3D Laser Line Profile Sensors

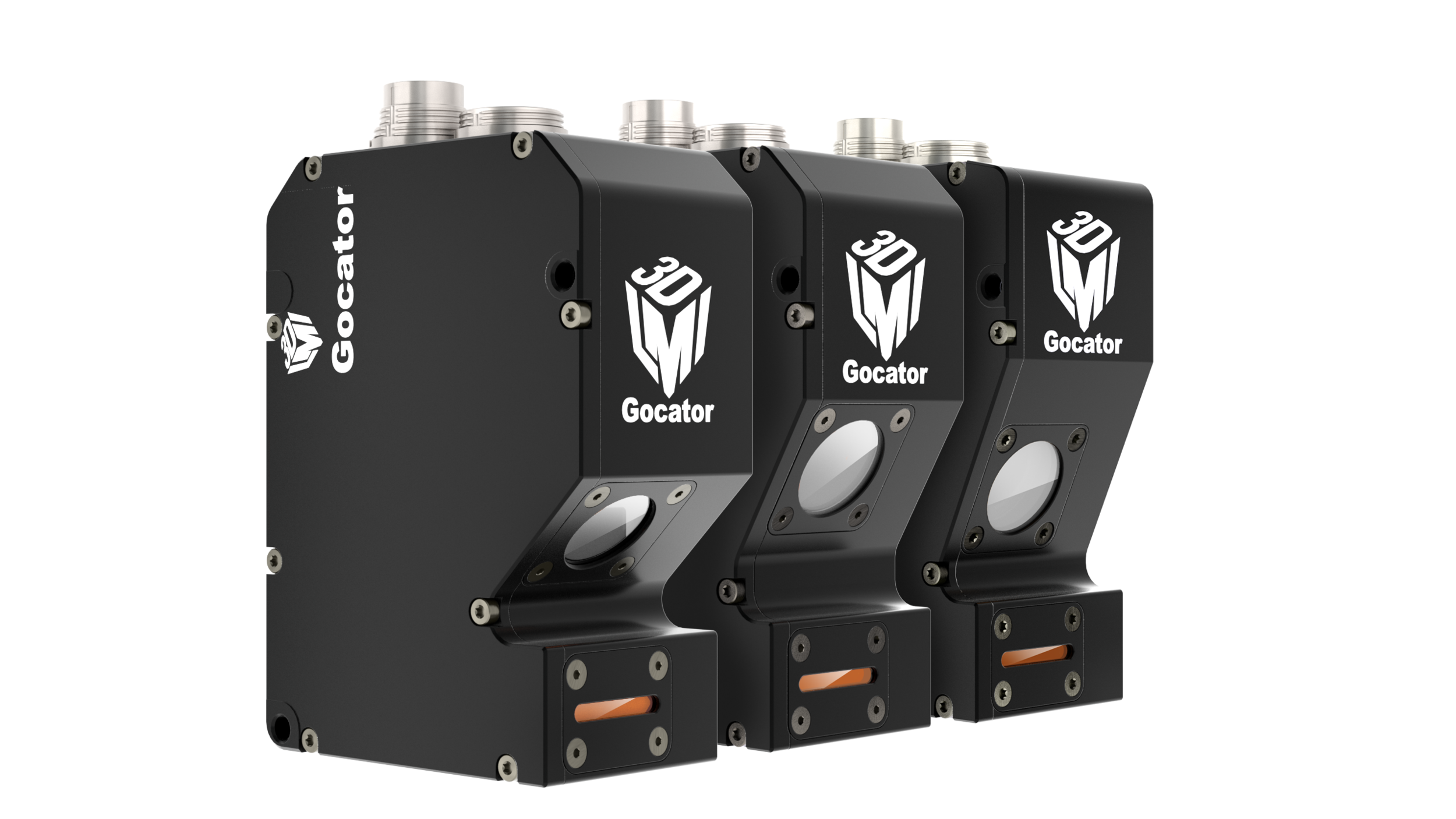

The 2500 series are high-speed 3D laser line profile sensors in the most compact and advanced Gocator® design yet. These sensors achieve inspection speeds up to 10 kHz—including scan, built-in 3D surface measurement, and pass/fail control—to meet inline production speed.

• Pre-calibrated to scan out-of-the-box
• X resolution down to 8µm
• 10,000 profiles per second including 3D measurement
• Setup & control via web browser or SDK
• Built-in tools, no programming
• Extend with GDK and GoMax

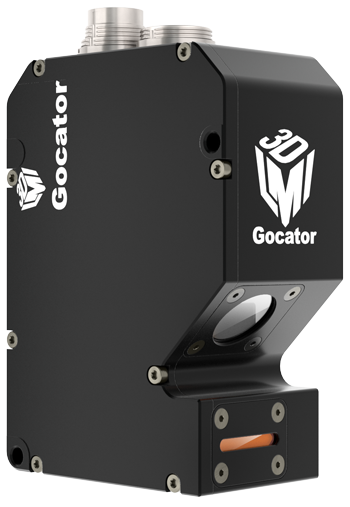

Gocator 2512

The 3D Smart Sensor for Scanning Glass

The all new Gocator® 2512 delivers high-precision 3D scanning of glass and other specular materials including polished metals and plastics. The sensor also provides exceptional performance in GD&T measurement of component assemblies with various challenging surface finishes (e.g., transparent, anti-glare, coated/uncoated, low/high contrast, UV, and glossy).


Gocator® 2530

High speed inspection. Wide field of view.

  • Scan, measure, and control at 10 kHz

  • 100 mm field of view (far end)

  • X resolution = Down to 28 microns

  • Z repeatability = 0.5 microns

  • Measurement Range (MR) = 80 mm

  • Short wavelength, high-sensitivity blue laser for “cleaner”
    scan data on specular surfaces

Ideal for customers who need to perform:

  • Surface inspection of battery electrodes, cells, and packs

  • Battery weld seam inspection

  • Dimensional gauging of battery cells

  • Cell phone midplate inspection

  • Tire sidewall and inner wall inspection

  • General factory automation applications


Quick Specs

Model 2510 2512 2520 2530
Resolution X (mm) 0.008 0.008 0.013 - 0.017 0.028-0.054
Resolution Z (mm) - - - -
Field of View(mm) 13.0 - 14.5 13.0 - 14.5 25 - 32.5 48-100
Clearance Distance (mm) 17.0 17.0 47.5 40.0
Measurement Range (mm) 6 6 25 80
Laser Blue Blue Blue Blue

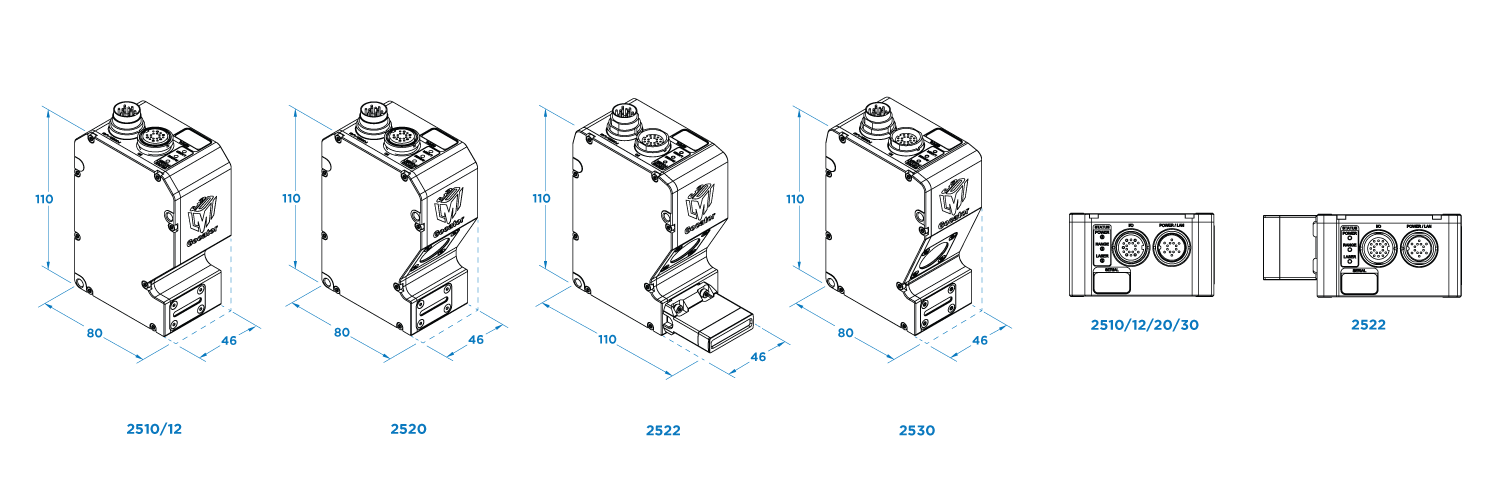

MECHANICALS


90 Degree Connector / Straight Connector
