3500 SERIES

High-Resolution 3D Snapshot Sensor

Gocator® 3500 high-resolution structured light 3D snapshot sensors bring metrology-grade performance to the inline factory environment.

  • Fast scan rate (6 Hz w/ acceleration)

  • 5-megapixel stereo camera minimizes occlusions

  • Pick-and-place friendly for robotic/stationary inspection applications


Gocator 3504

High-Resolution. High-Repeatability.

• Pre-calibrated, 6.7 µm xy resolution 3d data in a single snapshot
• Accurate 3d measurement with blue light projection
• Industrial design for long life
• Removes cost of linear motion systems and minimizes error due to vibration





Gocator 3506

Highest-resolution 3D snapshot sensor on the market

  • 3D Point clouds in a single shot

  • Accurate 3D measurement with blue light projection

  • Industrial design for long life






Gocator 3520

3D snapshot sensor

• Pre-calibrated, 74 micron XY resolution 3D data in a single snapshot
• Up to 282 x 175 mm field of view (FOV)
• Accurate 3D measurement with blue LED light projection
• Industrial design for long life
• Removes cost of linear motion systems and minimizes error due to vibration




Quick Specs

Model 3504 3506 3520
Resolution XY (µm) 6.7-7.2 20-25 74-121
VDI/VDE Accuracy (µm) - 12
Field of View (mm) 12.1 x 13.2 - 13.0 x 15.0 27 x 45 - 30 x 45 179 x 115 x 282 x 175
Clearance Distance (CD) (mm) 52.5 87 203
Measurement Range (mm) 7 25 150

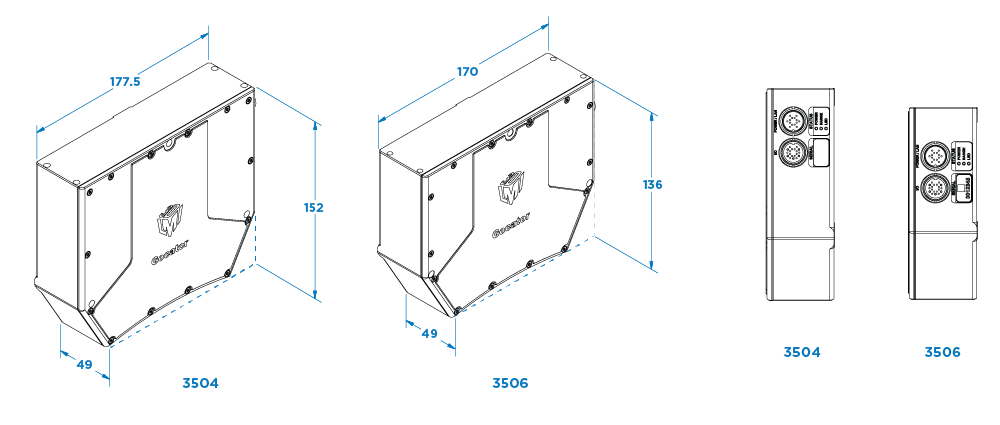

MECHANICALS

90 Degree Connector / Straight Connector
